How to Create a Pattern under time sheet management

To create a new Pattern under the time sheet module, follow the given steps:

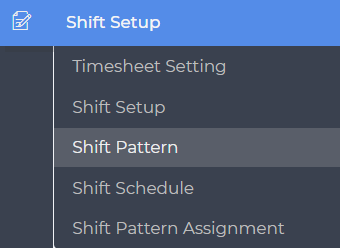

Step 01: Go to the “Shift Setup” module and select the “Shift Pattern” from the drop-down list.

Step 02: From here click the “ADD PATTERN” button to create a Pattern Name.

Step 03: Enter the “Shift Pattern” name that can identify that this pattern contains the shift for specific employees. Then click the “SAVE” button.

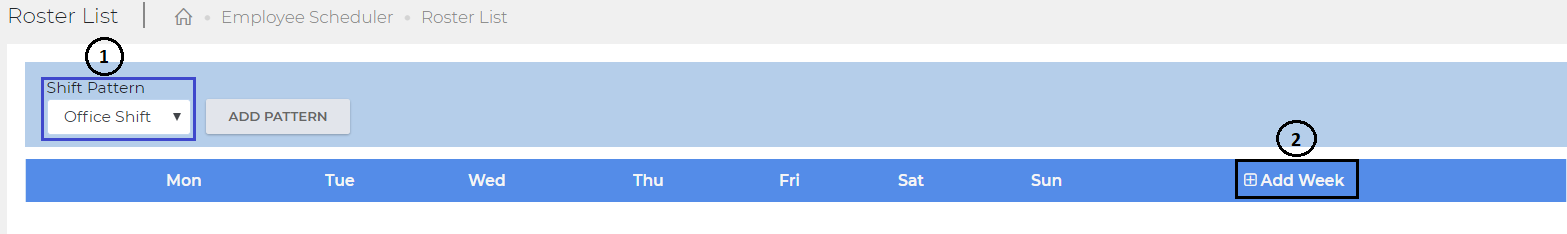

Step 04: Select the “Shift Pattern” from the Drop down list and click the “Add Week” button from the right grid.

*When you select the Shift Pattern from the Drop down, if the newly created pattern is not in the Drop down list then refresh the page.

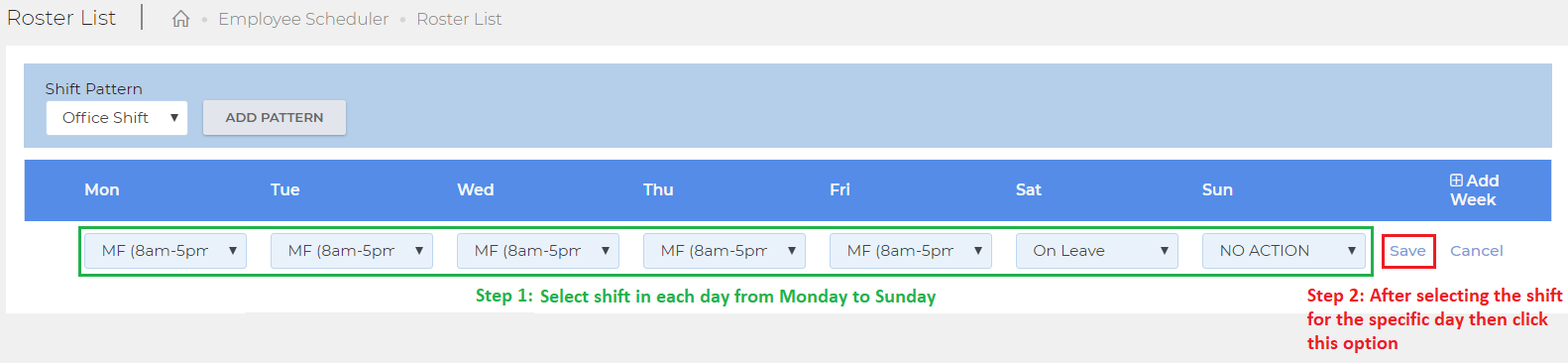

Step 05: The system prompts with the given page. Select the shift in each day from Monday to Sunday and click the “Save” option as shown in the picture.

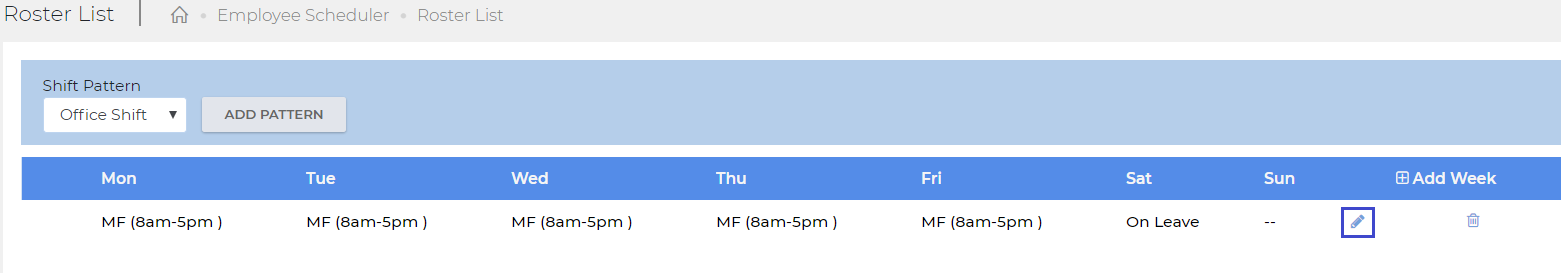

Step 06: To edit the added shift information click the editicon corresponding to the shift and do the changes then click the “Save” option.

Once done “Successful Alert” appears.

Product Version: SMEPayroll^TM Version 11
